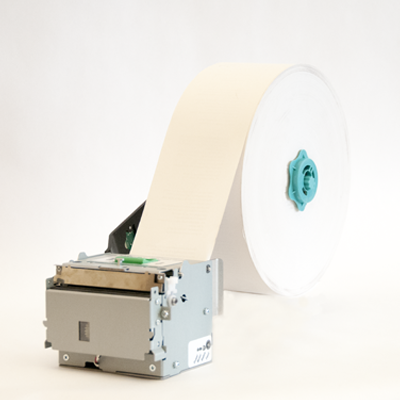

338M THERMAL KIOSK PRINTER

MICROCOM 338M THERMAL KIOSK PRINTER


KEY FEATURES:

PAPER WIDTH
2”-3.25" (50.8 mm-82.5 mm)

PRINT RESOLUTION
203 dpi or 300 dpi

MAX PRINT SPEED
Up to 8” /second (200 mm)

COMMUNICATION PORTS
USB

FIELD REPLACEABLE WEAR PARTS
Print Head, Drive Roller, Cutter

INDUSTRIES:

The 338M is more than just a receipt printer. This kiosk mechanism prints on most media up to 3 inches wide. Configure it as a label printer or a tag printer; the 338M is a high quality, low maintenance solution for many different applications.

338M Features:

  • Guillotine cutter (optional industrial rotary cutter)
  • Easy to replace wear parts
  • Rugged metal design
  • Presenter (optional)
  • High torque motor for thicker stock and larger rolls (optional)
  • Small form factor
  • Auto loading capability
  • Windows print driver for quick and easy integration
  • Microcom LDS programming language
  • Paper up to .013” thick
  • 20MB Flash for storing fonts and graphics
  • 8MB RAM

338M Accessories:

338M Uses:


  • Live Event Ticketing
  • Promotional Voucher Issue
  • Automated Parking Attendant
  • Receipt Printing
  • Admissions Processing
  • Unattended Weigh Scale Applications

338M Drivers:


Name Description Category Download
Windows FTDI USB Driver Used for USB connectivity on FTDI chip set printers by utilizing a USB to Virtual Serial Port driver Driver
Windows Print Driver For general Windows printing using Windows print sub system Driver

338M Utilities:


Name Description Category Download
MCT Terminal application for communication with Microcom products Utilities
BMP2MIC Bitmap to Microcom format for graphic creation Utilities

Manuals for the 338M and applications:


Name Description Category Download
Windows Print Driver Manual Download and view the manual for the Microcom Windows driver Manual
338M Operators Manual Download and view the operators manual for the Microcom 338M thermal printer Manual
PAPER WIDTH: 2”-3.25" (50.8 mm-82.5 mm)
PAPER THICKNESS: UP TO .013" (.33 mm)
  • 2" x 5.5” Event Tickets
  • 3.25" x 2” Cinema Tickets
  • Credit Card Tickets
  • Continuous Receipt Roll
    (up to 3.25” wide)
  • Fanfold Media (up to 3.25” wide)
  • Die-Cut Labels


*Don't see what you're looking for? Contact sales at sales@microcomcorp.com or (740) 548-6262*

[INSTRUCTIONS FOR USB CONNECTED PRINTERS | IF USING ETHERNET, SKIP TO DOWNLOAD]




NOTE: You must first install the FTDI USB Driver before using the USB port on the X38 Series printers.



Connecting printer & powering it on will cause OS to search for appropriate driver. | If OS is unable to find the driver, follow instructions below to manually install the driver.


  Quick Steps:

  1. If using the USB port; Connect and power on the printer.

  2.
  3. If the Operating System fails to install the USB driver, run the CDM20814_Setup.exe (FTDI USB Driver) to manually install the USB port.

  4.
  5. Once the FTDI USB Driver is installed, disconnect the USB and then reconnect it before installing the Windows Print Driver.

  6.
  7. If using the Windows printer driver, please run the Microcom Print Driver installer; Setup-2.X.X.XX.exe.

  8.


  **For more detailed information, please consult the appropriate driver install manual.


Download Windows Driver




[FOR USE WITH MODELS: 438,438TC,438T,438TM,238M,238ML,338M,AND 334M]
