485T THERMAL PRINTER

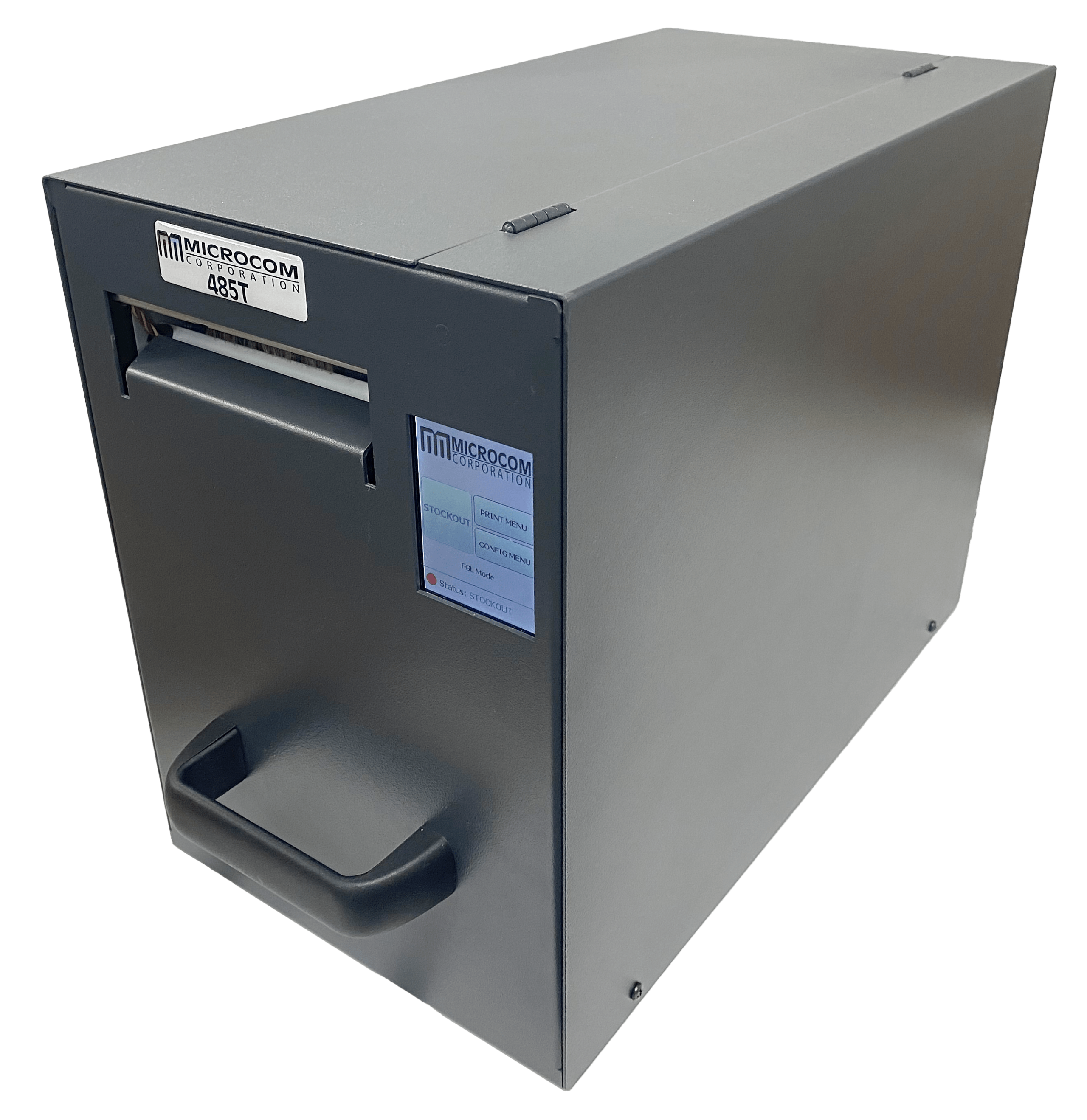

MICROCOM 485T THERMAL TICKET AND LABEL PRINTER

Slide background

KEY FEATURES:

PAPER WIDTH
1.5”-4.375" (38.1 mm-111 mm)

PRINT RESOLUTION
203 dpi or 300 dpi

MAX PRINT SPEED
Up to 8” /second (203 mm)

COMMUNICATION PORTS
RS-232 Serial, USB, Ethernet (Standard)

FIELD REPLACEABLE WEAR PARTS
Print Head, Drive Roller, Cutter

INDUSTRIES:

The 485T provides fast, high quality printing with the ability to store tickets, continuous rolled media, and any other paper that can be run through it. Increase security by adding an optional key or combination lock to the storage cabinet. Get more for less with this thermal ticketing printer.

485T Features:

  • Industrial rotary cutter (optional)
  • Easy to replace wear parts
  • Standard Ethernet port
  • Rugged metal housing
  • Internal ticket storage
  • Auto loading capability
  • Windows print driver for quick and easy integration
  • FGL emulation
  • Paper up to .013” thick
  • 512MB Flash for storing fonts and graphics
  • 256MB RAM

485T Accessories:

485T Uses:


  • Live Event Ticketing
  • Admissions Processing
  • Box Office
  • Promotional Voucher Issue
  • Ship Station

485T Drivers:


Name Description Category Download
X85 USB CDC Driver A required driver for USB communications | Driver provides a VCP (virtual com port) Driver
Windows Print Driver For general Windows printing using Windows print sub system Driver
Linux CUPS Driver For general Linux printing using CUPS print sub system Driver

485T Utilities:


Name Description Category Download
X85 Configuration Application Used for printer mode switching (FGL and Windows Print Driver), communication configuration settings, and IP discovery Utilities
FGL Configuration Application Used to test functionality and change configuration options while operating in FGL language mode Utilities
IP Discovery Application for Windows Used for IP discovery (.exe) Utilities
IP Discovery File for Windows and Linux Used for IP discovery (.jar) Utilities
MCT Terminal application for communication with Microcom products Utilities

Developer Tools:


Name Description Category Download
X85 Android Image Printing Sample Application Android Studio Project containing an app. Includes source code to be used as an example of how to communicate and print using java language. Sample
X85 iOS Image Printing Sample Application Xcode Project containing an iOS app. Includes source code to be used as an example of how to communicate and print using Objective-C and Xcode. Sample
X85 Ethernet Communication Sample Application Visual Studio project containing a Windows Forms App. Includes source code to be used as an example of how to communicate using a TCP/IP interface. Sample
X85 USB HID Communication Sample Application Visual Studio project containing a Windows Forms App. Includes source code to be used as an example of how to communicate using a HID interface. Sample
X85 USB Serial Communication Sample Application Visual Studio project containing a Windows Forms App. Includes source code to be used as an example of how to communicate using the serial interface. Sample

Manuals for the 485T and applications:


Name Description Category Download
Windows Print Driver Manual Download and view the manual for the Microcom Windows driver Manual
485T Operators Manual Download and view the operators manual for the Microcom 485T thermal printer Manual
PAPER WIDTH: 1.25”-4.375" (31.7 mm-111 mm)
PAPER THICKNESS: UP TO .013" (.33 mm)
  • 2" x 5.5” Event Tickets
  • 3.25" x 2" Cinema Tickets
  • Credit Card Tickets
  • 3.25" x 6" Ski Lift Tickets
  • 4" x 6" Die-Cut Labels
  • Continuous Roll (up to 4.375” wide)
  • Fanfold Media (up to 4.375” wide)


*Don't see what you're looking for? Contact sales at sales@microcomcorp.com or (740) 548-6262*

[INSTRUCTIONS FOR USB CONNECTED PRINTERS | IF USING ETHERNET, SKIP TO DOWNLOAD]




NOTE: You must first install the CDC USB Driver before using the USB port on the X85 Series printers.



Quick Steps:

  1. Install the Microcom_USBCOM_v1.28.0_2017-11-07_setup.exe (Microcom CDC Driver).

  2.
  3. Connect and power on the printer.

  4.
  5. If using the Windows printer driver, please run the Microcom Print Driver installer; Setup-2.X.X.XX.exe.

  6.


  **For more detailed information, please consult the appropriate driver install manual.


Download Windows Driver


[FOR USE WITH MODELS: 485TC,485T,AND 485TM]



[INSTRUCTIONS FOR USB CONNECTED PRINTERS | IF USING ETHERNET, SKIP TO DOWNLOAD]




NOTE: You must first install the CDC USB Driver before using the USB port on the X85 Series printers.



Quick Steps:

  1. Install the Microcom_USBCOM_v1.28.0_2017-11-07_setup.exe (Microcom CDC Driver).

  2.
  3. Connect and power on the printer.

  4.
  5. If using the Windows printer driver, please run the Microcom Print Driver installer; Setup-2.X.X.XX.exe.

  6.


  **For more detailed information, please consult the appropriate driver install manual.


Download Windows Driver


[FOR USE WITH MODELS: 485TC,485T,AND 485TM]
