238ML THERMAL KIOSK PRINTER

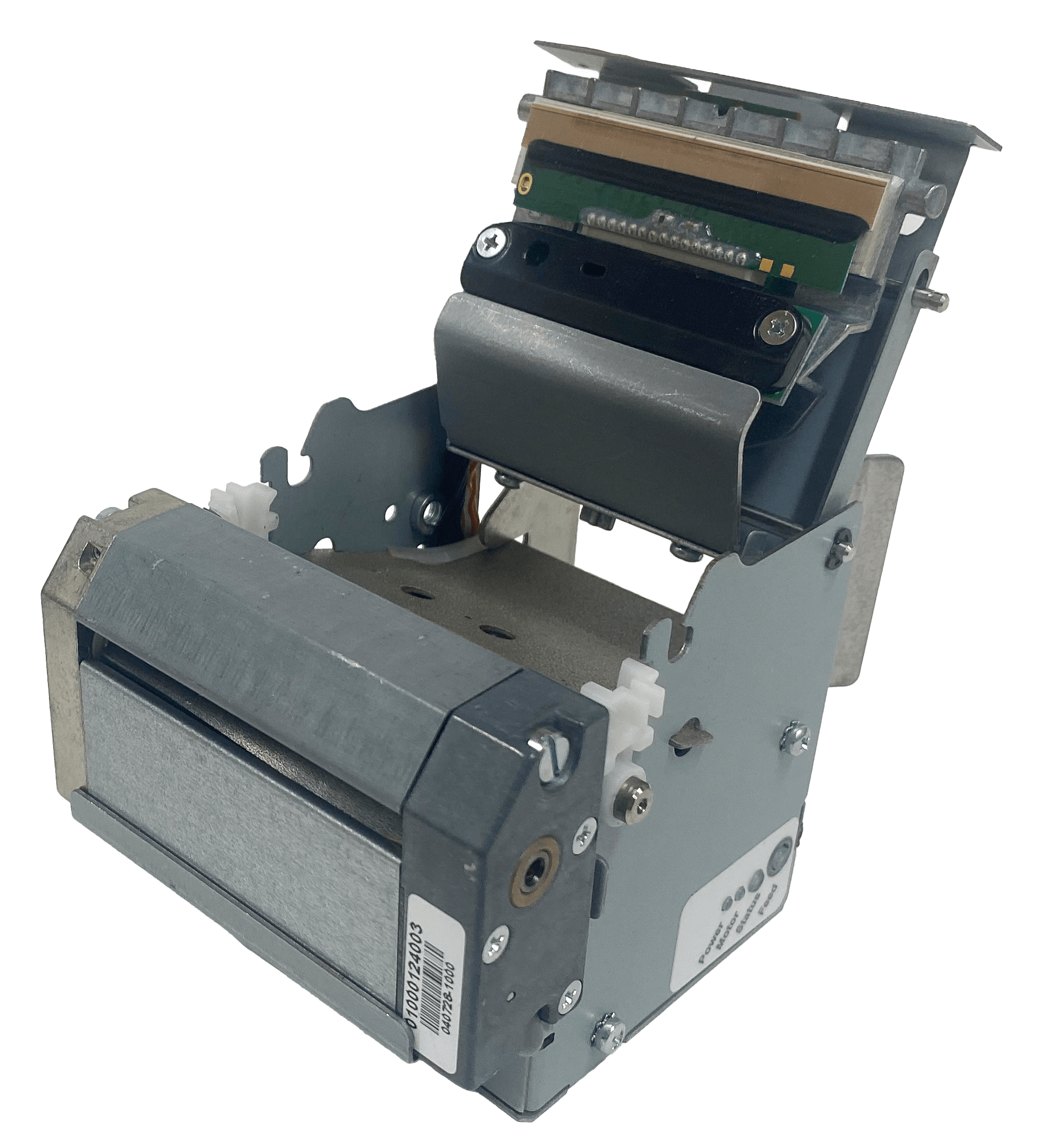

MICROCOM 238ML LINERLESS THERMAL KIOSK PRINTER


KEY FEATURES:

PAPER WIDTH
1”-2.25" (25.4 mm-58 mm)

PRINT RESOLUTION
300 dpi

MAX PRINT SPEED
Up to 8” /second (200 mm)

COMMUNICATION PORTS
USB

FIELD REPLACEABLE WEAR PARTS
Print Head, Drive Roller, Cutter

INDUSTRIES:

While the 238ML was specifically intended as a linerless bag tag printer, it is not limited to only baggage tags. Other 2” linerless materials are also suitable. To eliminate jams due to label adhesives, the paper pathway has been specially modified to allow easy passage of linerless materials.

238ML Features:

  • Industrial rotary cutter
  • Easy to replace wear parts
  • Rugged metal design
  • Linerless media path
  • High torque motor for thicker stock and larger rolls
  • Small form factor
  • Auto loading capability
  • Windows print driver for quick and easy integration
  • Microcom LDS programming language
  • Paper up to .013” thick
  • 20MB Flash for storing fonts and graphics
  • 8MB RAM

238ML Mounting Options:


238ML Accessories:

slide3

238ML Drivers:


Name Description Category Download
Windows FTDI USB Driver Used for USB connectivity on FTDI chip set printers by utilizing a USB to Virtual Serial Port driver Driver
Windows Print Driver For general Windows printing using Windows print sub system Driver

238ML Utilities:


Name Description Category Download
MCT Terminal application for communication with Microcom products Utilities
BMP2MIC Bitmap to Microcom format for graphic creation Utilities

Developer Tools:


Name Description Category Download
Windows Driver Sample Application Used to demo the Microcom Windows driver programmatically | Requires Windows Print Driver Sample Application

Manuals for the 238ML and applications:


Name Description Category Download
Windows Print Driver Manual Download and view the manual for the Microcom Windows driver Manual
238ML Operators Manual Download and view the operators manual for the Microcom 238ML thermal printer Manual
PAPER WIDTH: 1”-2.25" (25.4 mm-58 mm)
PAPER THICKNESS: UP TO .013" (.33 mm)
  • Linerless Bag Tags
  • Linerless Die-Cut Labels


*Don't see what you're looking for? Contact sales at sales@microcomcorp.com or (740) 548-6262*

Request more Information


You may contact us by filling in this form any time you need professional support
or have any questions.



* indicates required field

Request more Information


You may contact us by filling in this form any time you need professional support
or have any questions.



* indicates required field

[INSTRUCTIONS FOR USB CONNECTED PRINTERS | IF USING ETHERNET, SKIP TO DOWNLOAD]




NOTE: The FTDI USB Driver is located in the Windows Driver Zip File



Connecting printer & powering it on will cause OS to search for appropriate driver. | If OS is unable to find the driver, follow instructions below to manually install the driver.


  Quick Steps:

  1. If using the USB port; Connect and power on the printer.

    2.
  2. If the Operating System fails to install the USB driver, run the CDM20814_Setup.exe (FTDI USB Driver) to manually install the USB port.

    3.
  3. Once the FTDI USB Driver is installed, disconnect the USB and then reconnect it before installing the Windows Print Driver.

    4.
  4. If using the Windows printer driver, please run the Microcom Print Driver installer; Setup-2.X.X.XX.exe.

    5.


  **For more detailed information, please consult the appropriate driver install manual.


Download Windows Driver




[FOR USE WITH MODELS: 438,438TC,438T,438TM,238M,238ML,338M,AND 334M]
