360C COLOR LASER TICKET + LABEL PRINTER

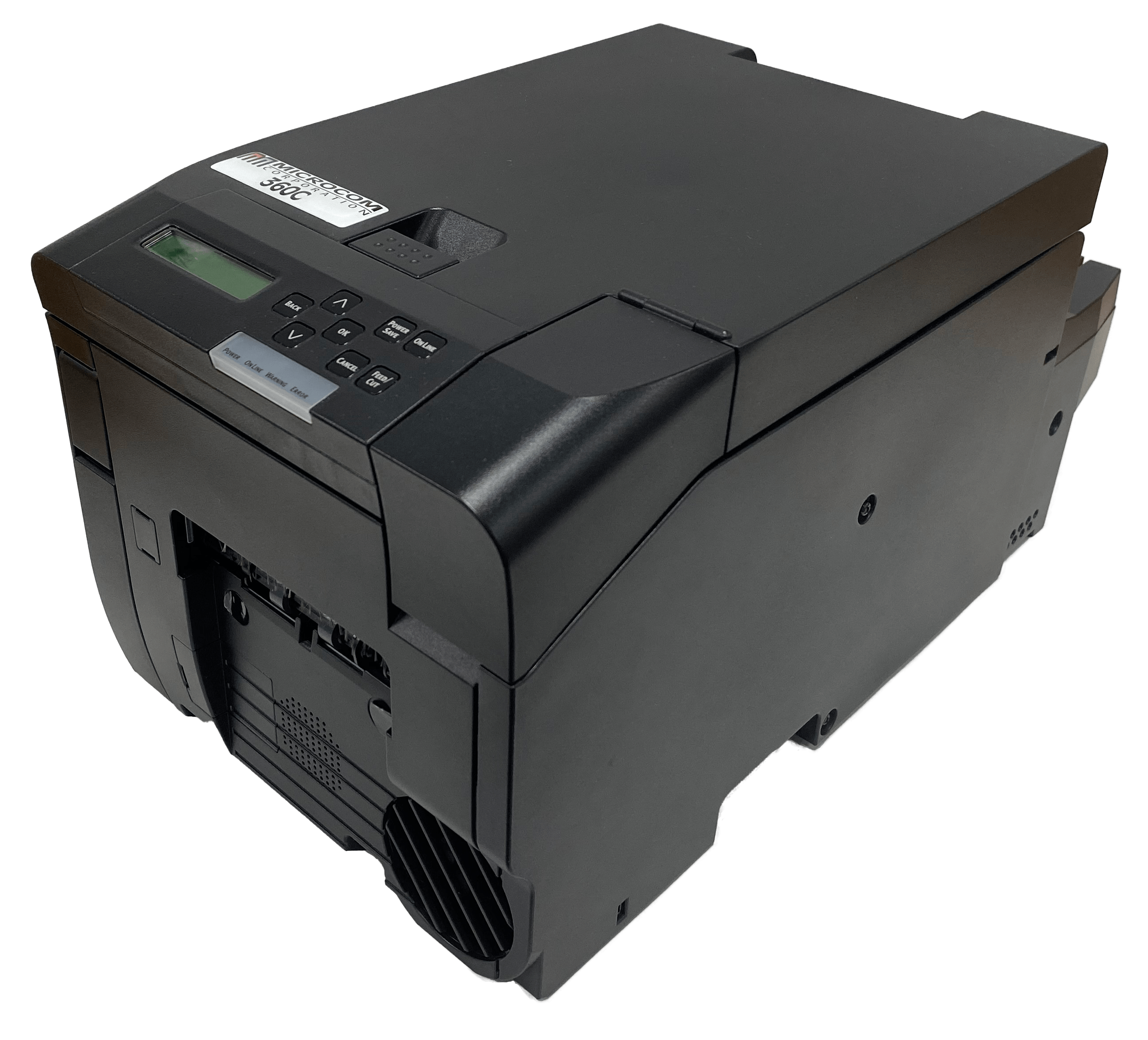

MICROCOM 360C COLOR LASER TICKET + LABEL PRINTER


KEY FEATURES:

PAPER WIDTH
1”-3.4" (25 mm-86 mm)

PRINT RESOLUTION
600 dpi or 1200 dpi

MAX PRINT SPEED
Up to 6” /second (152 mm)

COMMUNICATION PORTS
USB, ETHERNET, and WI-FI (Optional)

MEDIA DETECTION SENSORS
Configurable black line sensor, Transmissive sensor

APPLICATIONS:

The Model 360C is the first Microcom printer capable of CMY color printing. Housed in a compact footprint, the printer uses standard (non-thermal) media to create high definition, full color images on demand. The fast 6” per second print speed lets users print a batch of premium color tickets quickly. The 360C has easily replaceable parts and affordable toner cartridges to keep the printer in top condition for many years after purchase.

360C Features:

  • LED three-color printing (CMY)
  • Industrial rotary cutter
  • USB, Ethernet and WIFI (optional)
  • Continuous, fan-fold, and cut sheet paper
  • Black mark, hole, and gap media detection
  • Paper up to .009” thick
  • PCL XL programming language
  • Affordable toner cartridges
  • Adjustable paper guides
  • Dimensions: 7.8" (198 mm) WIDTH | 15" (380 mm) DEPTH | 7.8" (198 mm) HEIGHT

360C Accessories:

slide2
slide3
slide4
slide5

360C Uses:



  • Event Ticketing
  • Fundraising Events
  • VIP Ticketing
  • Membership Passes
  • Promotions
  • Event Wristbands
  • Retail Vouchers
  • Coupons

360C Drivers:



Name Description Category Download
Windows Print Driver For general Windows printing using Windows print sub system Driver

360C Utilities:



Name Description Category Download

Manuals for the 360C and applications:



Name Description Category Download
360C Operators Manual Download and view the operators manual for the Microcom 360C printer Manual

PAPER WIDTH: 1”-3.4" (25 mm-86 mm)


PAPER THICKNESS: UP TO .009" (.25 mm)


PAPER TYPE: Non-Thermal


Microcom Approved Media (Click Media for its Reference Guide):



*Don't see what you're looking for? Contact sales at sales@microcomcorp.com or (740) 548-6262*





360C Printable Area / Margins


Receipt Paper

Top Margin: 4.2 mm (0.16")

Bottom Margin: 2.0 mm (0.08")

Right/Left Margin:

-Media Width: (Greater Than or = 84 mm) 2.0 mm (0.08")

-Media Width: (Less Than 84 mm) Max 3 mm



Thick Ticket

Top Margin: 4.2 mm (0.16")

Bottom Margin: 2.0 mm (0.08")

Right/Left Margin:

-Media Width: (Greater Than or = 84 mm) 2.0 mm (0.08")

-Media Width: (Less Than 84 mm) Max 3 mm



Margin Width (Each Side) = "Your Media Width" - 80 mm / 2





Click image above for downloadable reference guide
